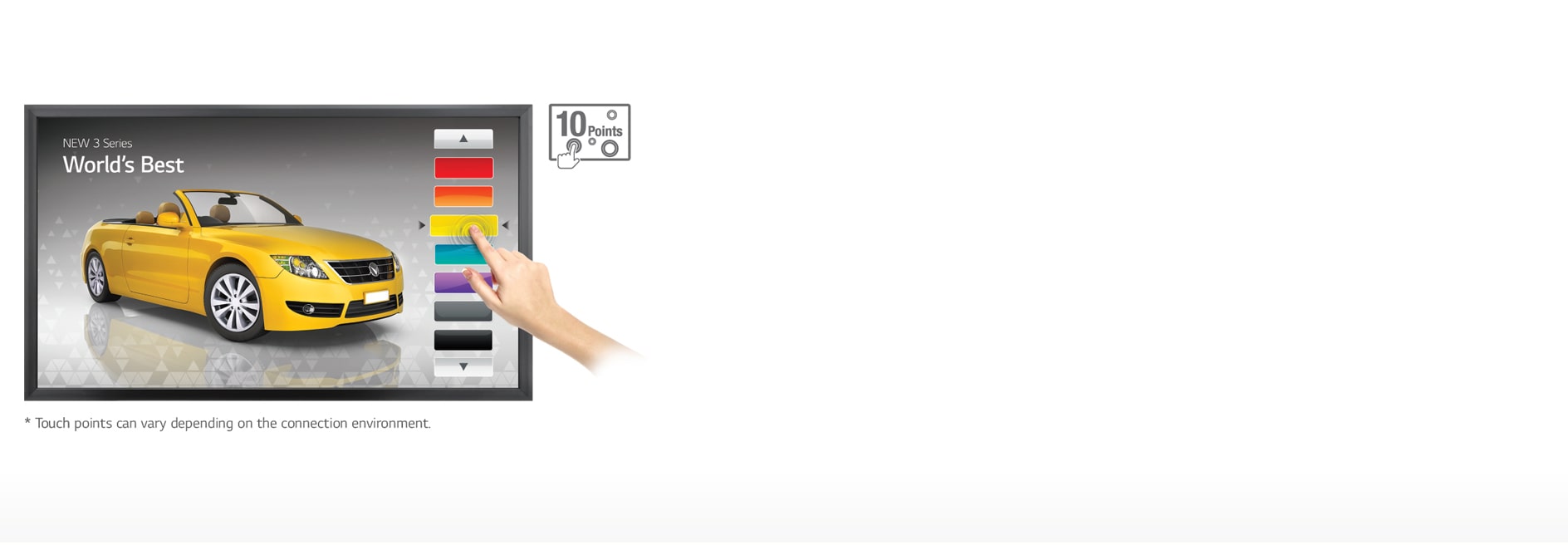

All-in-one Touch Experience
The TA3E series is a built-in touch display that provides immediate touch experiences without the need to purchase any separate overlay touch accessories. Various touch-based solutions can be applied for customer interactions to promote your brand, with a maximum of 10 touch points* supported.
All-in-one Touch Experience

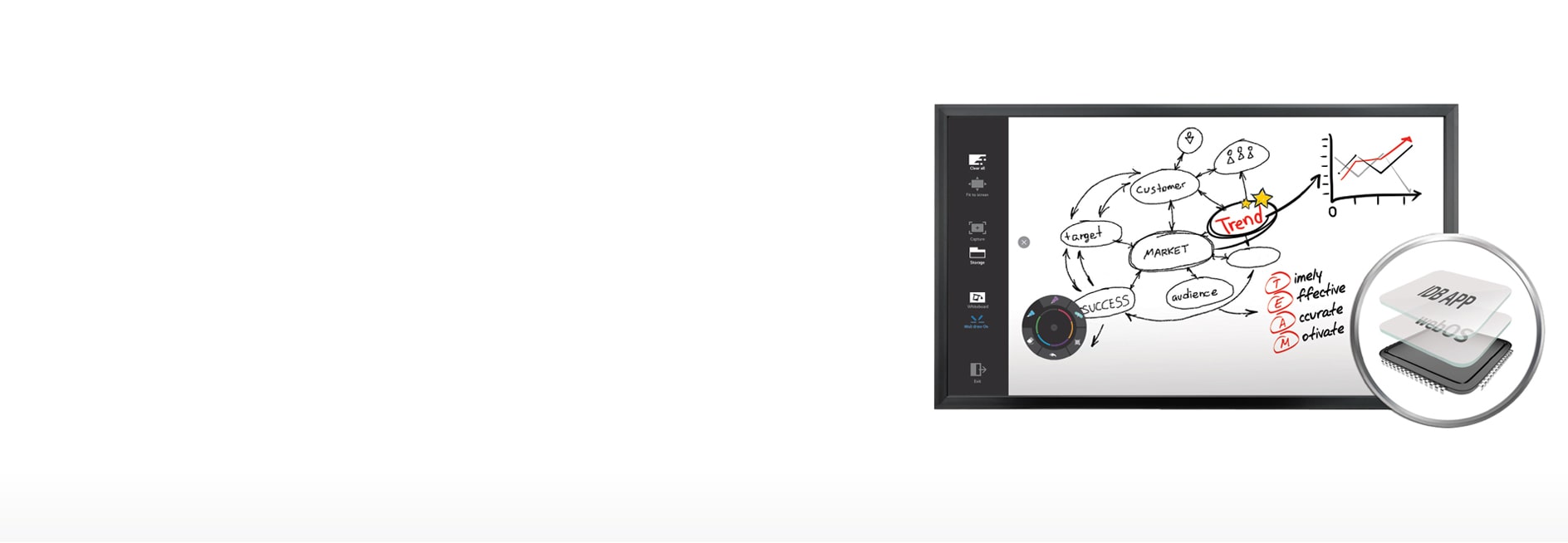

The LG IDB, the embedded writing application, offers an all-in-one solution for advanced customer engagement. No separate PC or software is necessary for white board performance, so operators can easily create two-way communication channels.
Simple Customization

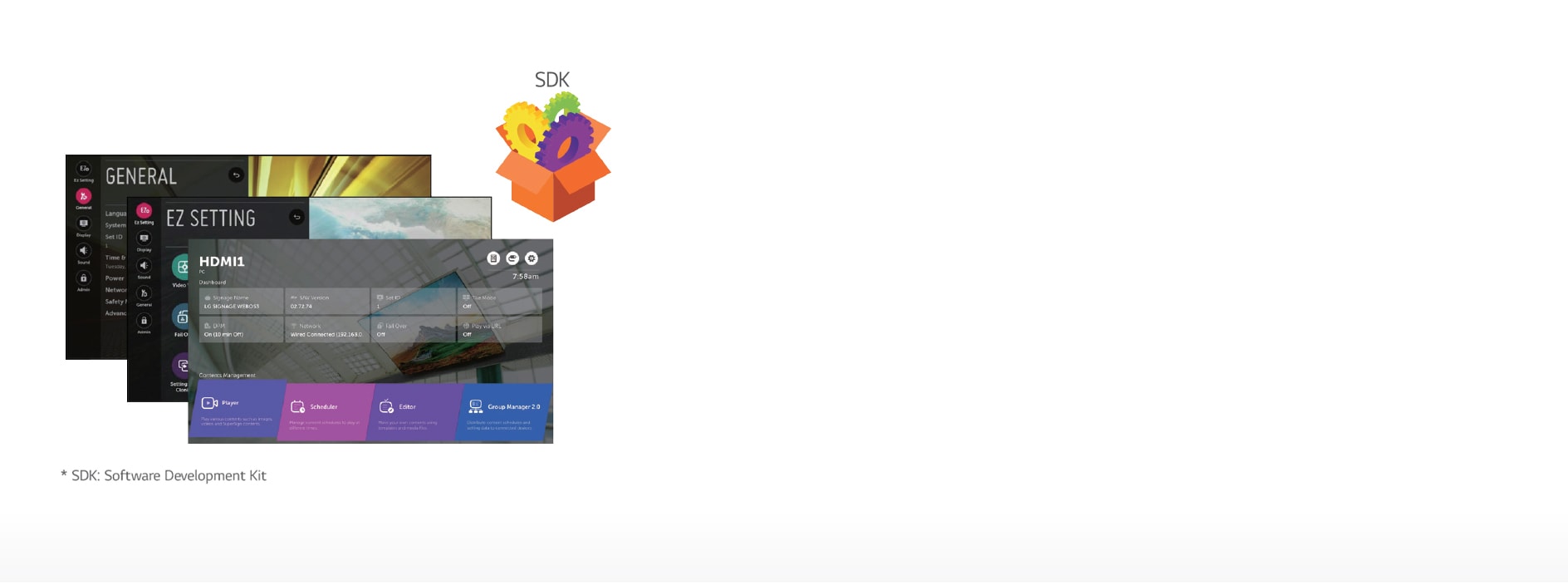

The LG webOS smart platform supports web-based HTML5 and offers SDK*, allowing SIs to easily build their own apps for customer solutions. Also, it enhances user convenience with an intuitive UI optimized for business purposes.
Simple Customization

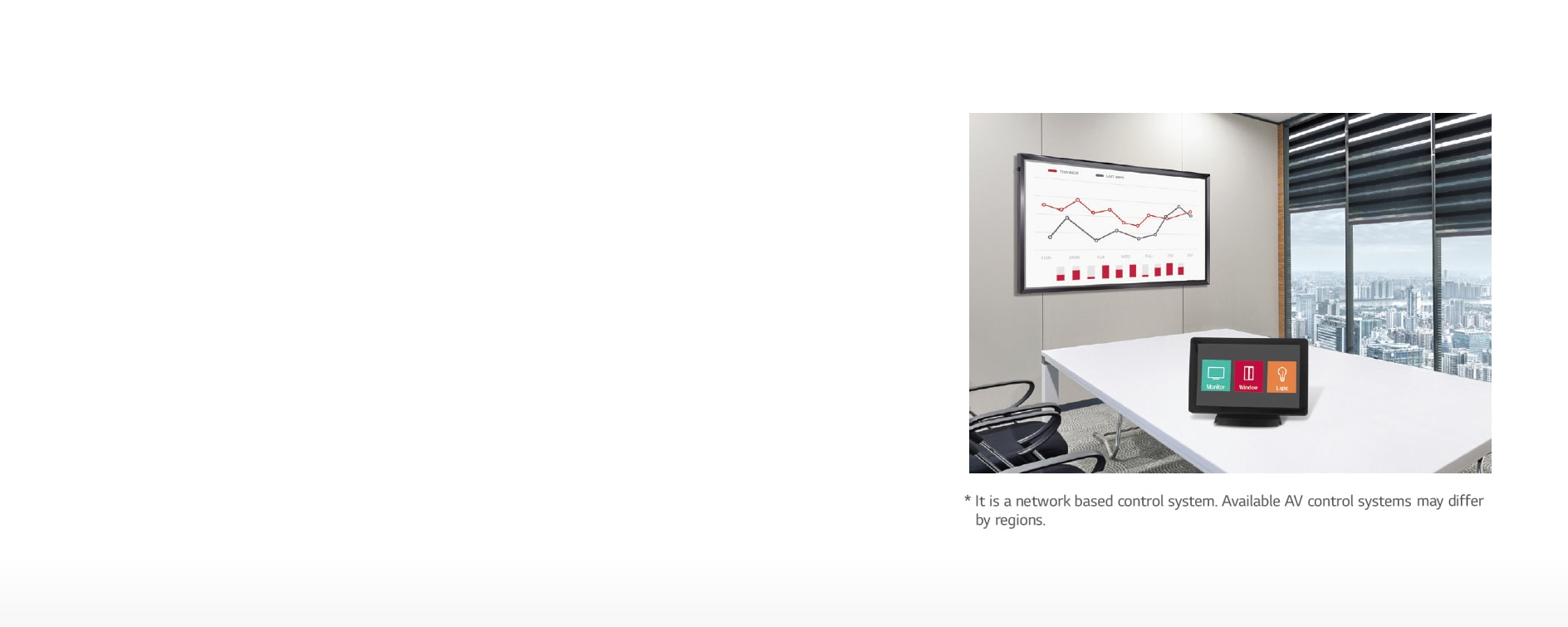

The TA3E series is compatible with AV control system, with which users can easily manage, monitor and control LG commercial displays from one location.
Simple Customization
With Beacon and Bluetooth Low Energy (BLE) support, the TA3E series lets stores provide coupons and information in real-time, which increases interactivity with customers at the moments when it most counts.
User Convenience

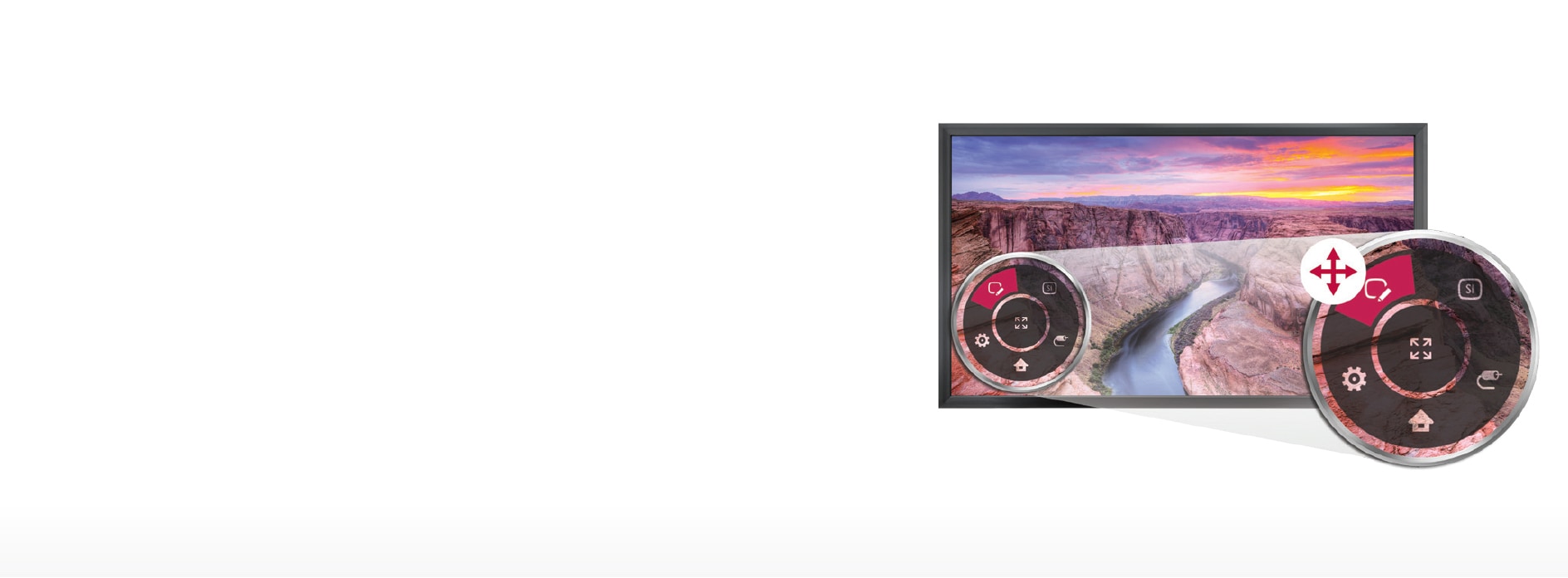

The touch menu is a subsidiary menu introduced to improve user-friendliness. Users can run the desired function or change the settings from anywhere by softly pressing the screen to call up the touch menu. The SI folder is especially designed to gather and show customized apps, making it easy for users to find and use them.
User Convenience

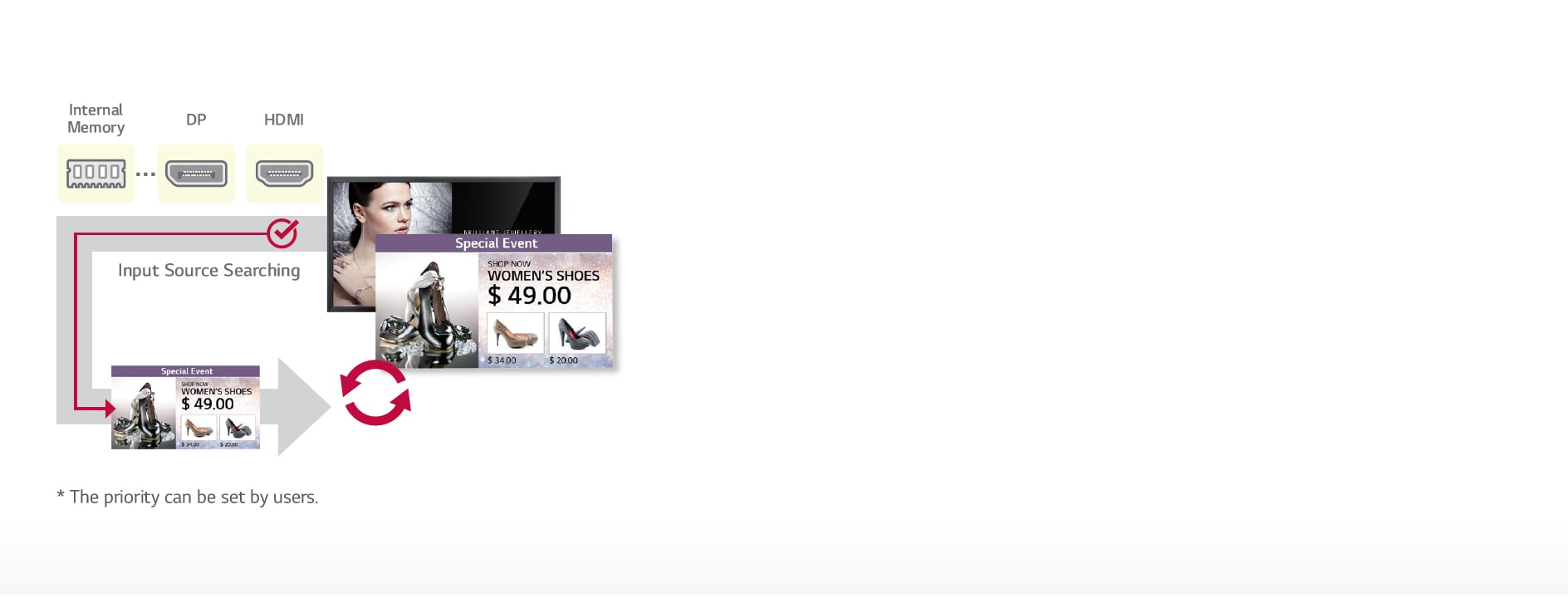

The failover function enables the display to detect the available input signals and automatically change the source when the current signal is disconnected or other higher priority signals* are connected. Users can prepare backup sources for any unexpected error.
User Convenience

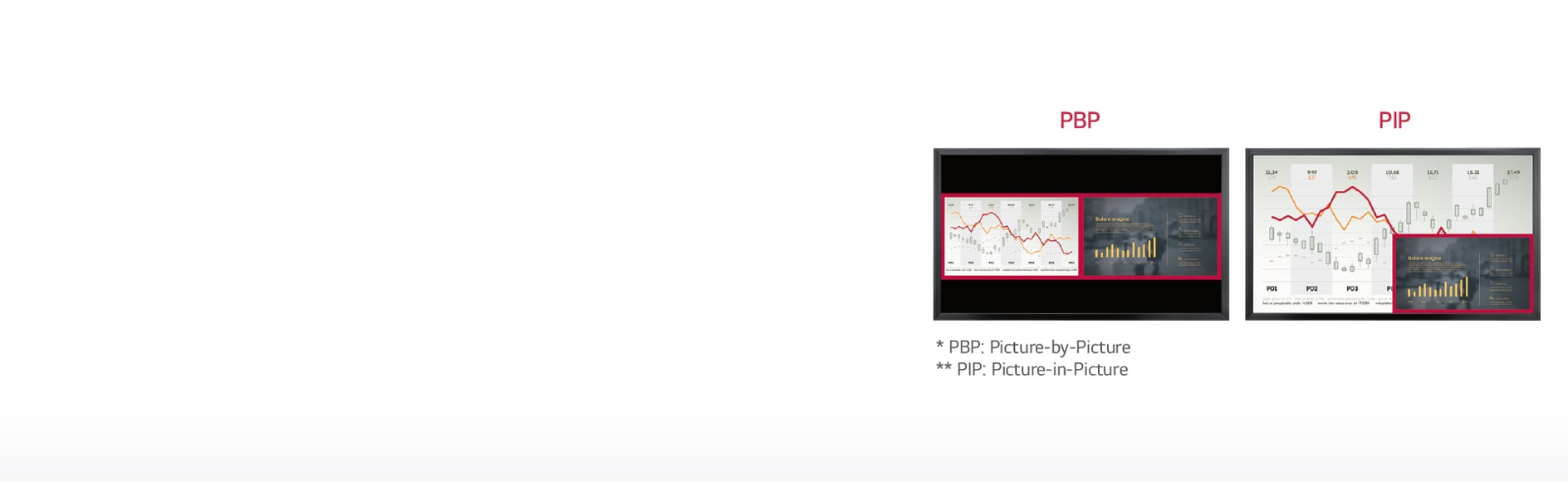

PBP* features multi screen in a single display with up to 2 input sources, thus maximizing usability of the screen. In addition, PIP** supports playing both main screen and sub screen at the same time with various layouts, so users can arrange many different usage scenarios efficiently.
Superior Picture Quality with IPS
The LG IPS panel has a wide viewing angle that delivers clear content, no matter where viewers see content on the display.

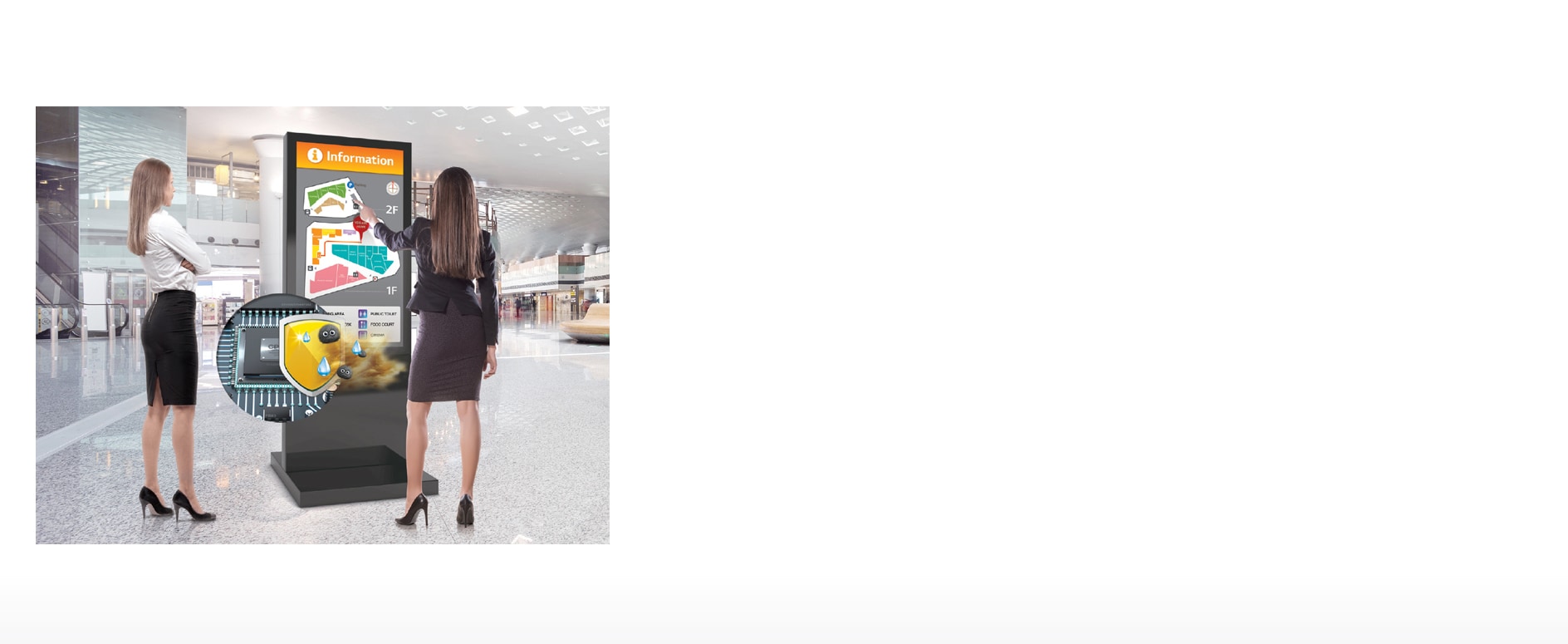

Conformal Coating
Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
| Brand | LG |
| Design Design |
Interactive flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| VESA mounting | Y |
| Orientation | Horizontal/Vertical |
| Housing material | Plastic |
| Panel mounting interface | 300 x 300 mm |
| Bezel width (bottom) | 3.27 cm |
| Bezel width (top) | 3.27 cm |
| Display Display diagonal |
55" |
| Display Resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Touchscreen | Y |
| Response Time | 10 ms |
| HD type | Full HD |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Viewing angle, horizontal | 178 |
| Viewing angle, vertical | 178 |
| Display brightness | 450 cd/m |
| Display type | LCD |
| Touch technology | Multi-touch |
| Panel life | 50000 h |
| Display diagonal (metric) | 139.7 cm |
| Memory Internal Memory |
8 GB |
| Audio Built-in speaker(s) |
Y |
| RMS rated power | 20 W |
| Number of built-in speakers | 2 |
| Networking Wi-Fi |
Y |
| Ethernet LAN | Y |
| Mouse Purpose |
Retail |
| Ports & interfaces HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| DVI-D ports quantity | 1 |
| USB port | Y |
| HDMI in | 2 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| VGA (D-Sub) input ports | 1 |
| Audio (L,R) out | 1 |
| RS-232C | Y |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Audio (L,R) in | 1 |
| DVI Port | Y |
| Remote (IR) input | 1 |
| USB ports quantity | 1 |
| DC-in jack | Y |
| Software Operating system installed |
Web OS |
| Power External power adapter |
N |
| Power consumption (typical) | 100 W |
| AC Input Voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system Computer system |
Y |
| System requirements Windows operating systems supported |
Windows 10,Windows 7,Windows 8,Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Y |
| Weight & dimensions Width |
1278 mm |
| Depth | 71.4 mm |
| Height | 748.8 mm |
| Weight | 28 kg |
| Bezel width (side) | 3.27 cm |
| Smart TV User memory |
4 GB |
| Smart modes | Energy saving,Natural,Standard |
| Performance Multi-display supported |
Y |
| SMART Signage TV (SSTV) | Y |
| Ambient light sensor | Y |
| Operating hours (hours/days) | 24/7 |
| Automatic brightness control | Y |
| Media player option type | Set Back Box (SBB) |
| Management features Picture-in-Picture |
Y |
| Picture-and-Picture | Y |
| On Screen Display (OSD) | Y |
| Features Hardness |
3H |
| HDBaseT certified | Y |
| Operational conditions Operating temperature (T-T) |
0 - 40 C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates Energy Star certified |
Y |
| Certification | UL, cUL, CB, TUV, KC, FCC Class "A", CE, KCC |
| Packaging data Cables included |
AC,VGA |
| Remote control type | IR |
| Handheld remote control | Y |
| Quick start guide | Y |
| Manual | Y |
| Batteries Included | Y |
| Package width | 1410 mm |
| Package depth | 207 mm |
| Package height | 880 mm |
| Package weight | 33 kg |
| Other features Auto signal detection |
Y |
| Compatible products | MP500, MP700 |
